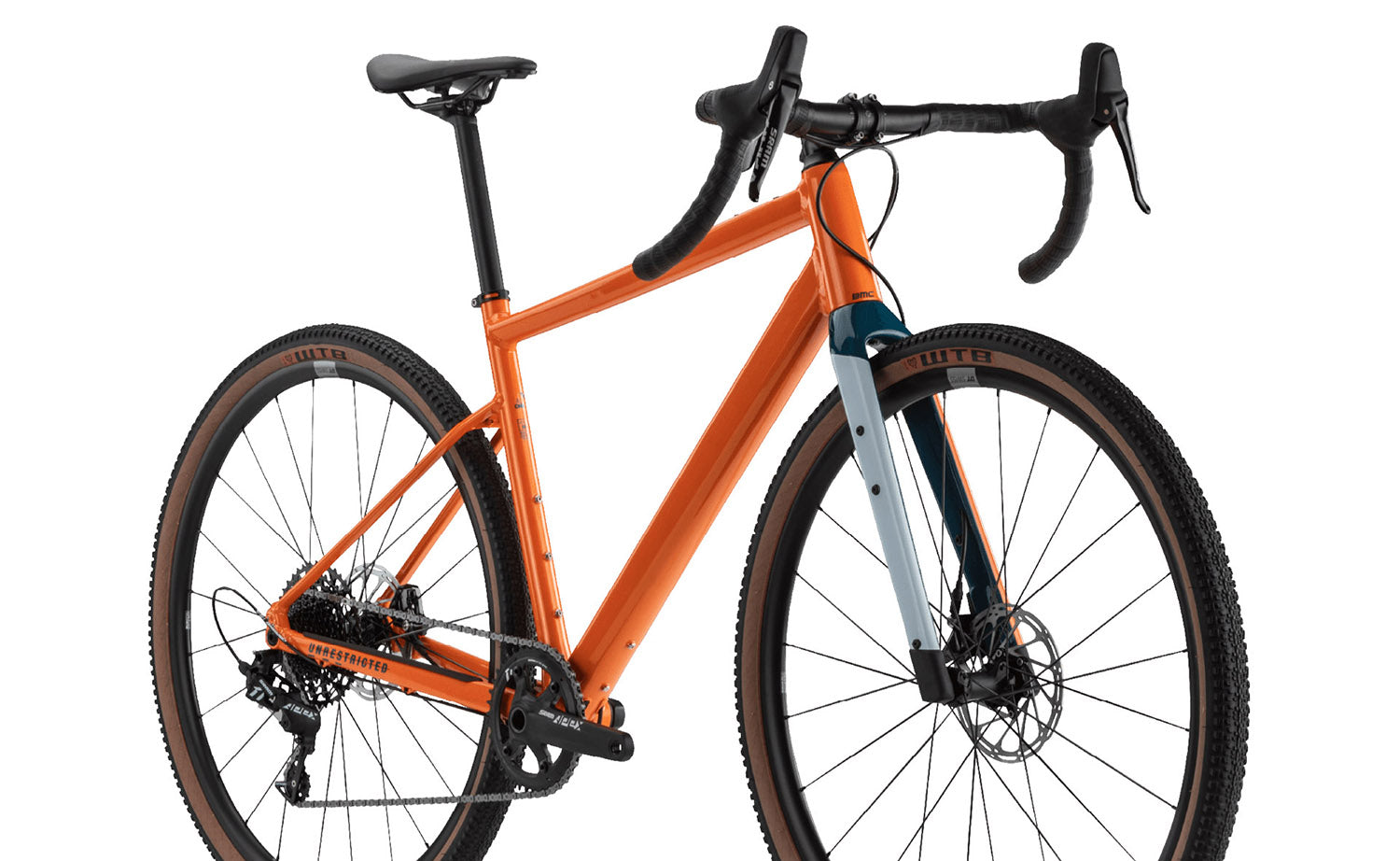

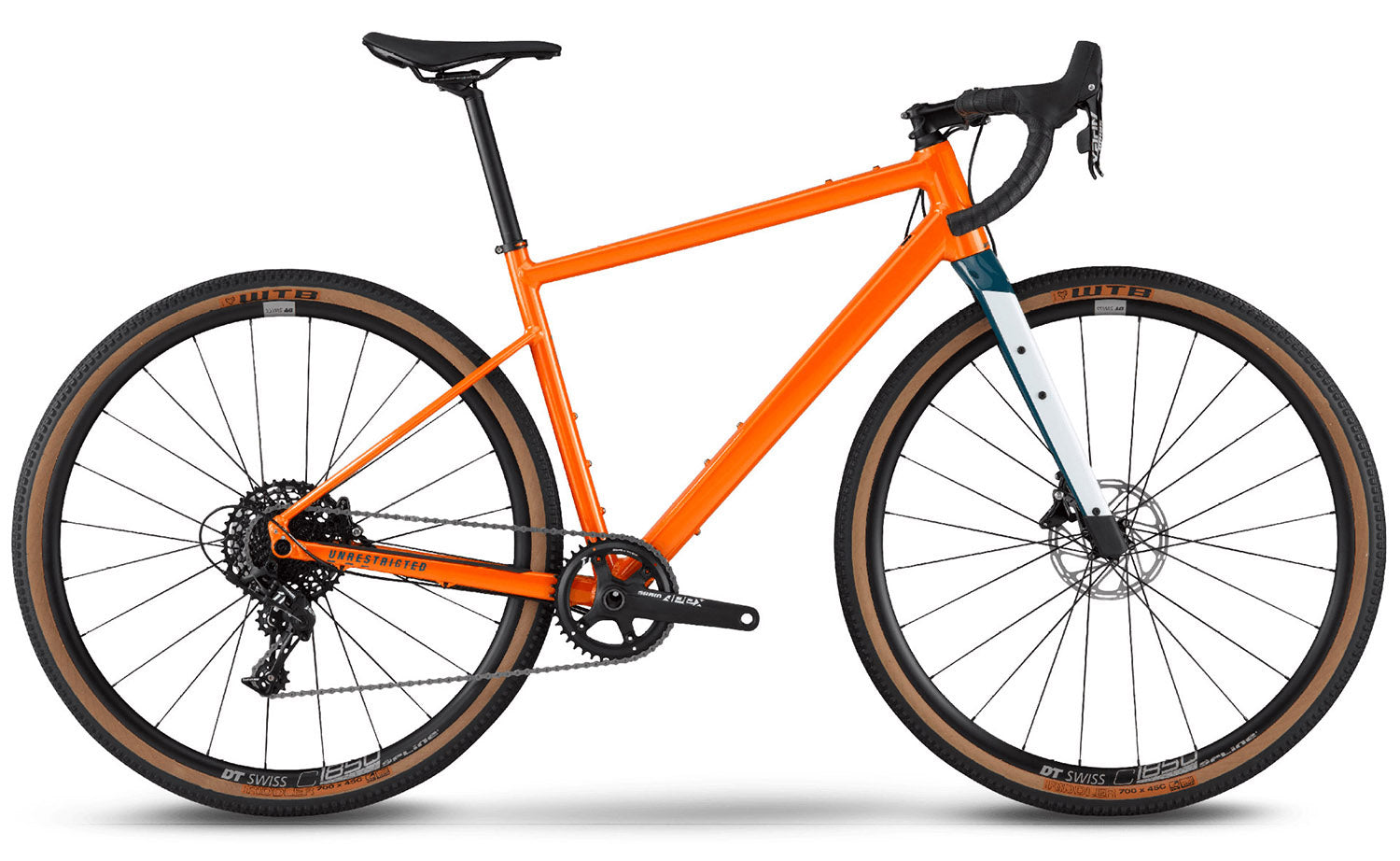

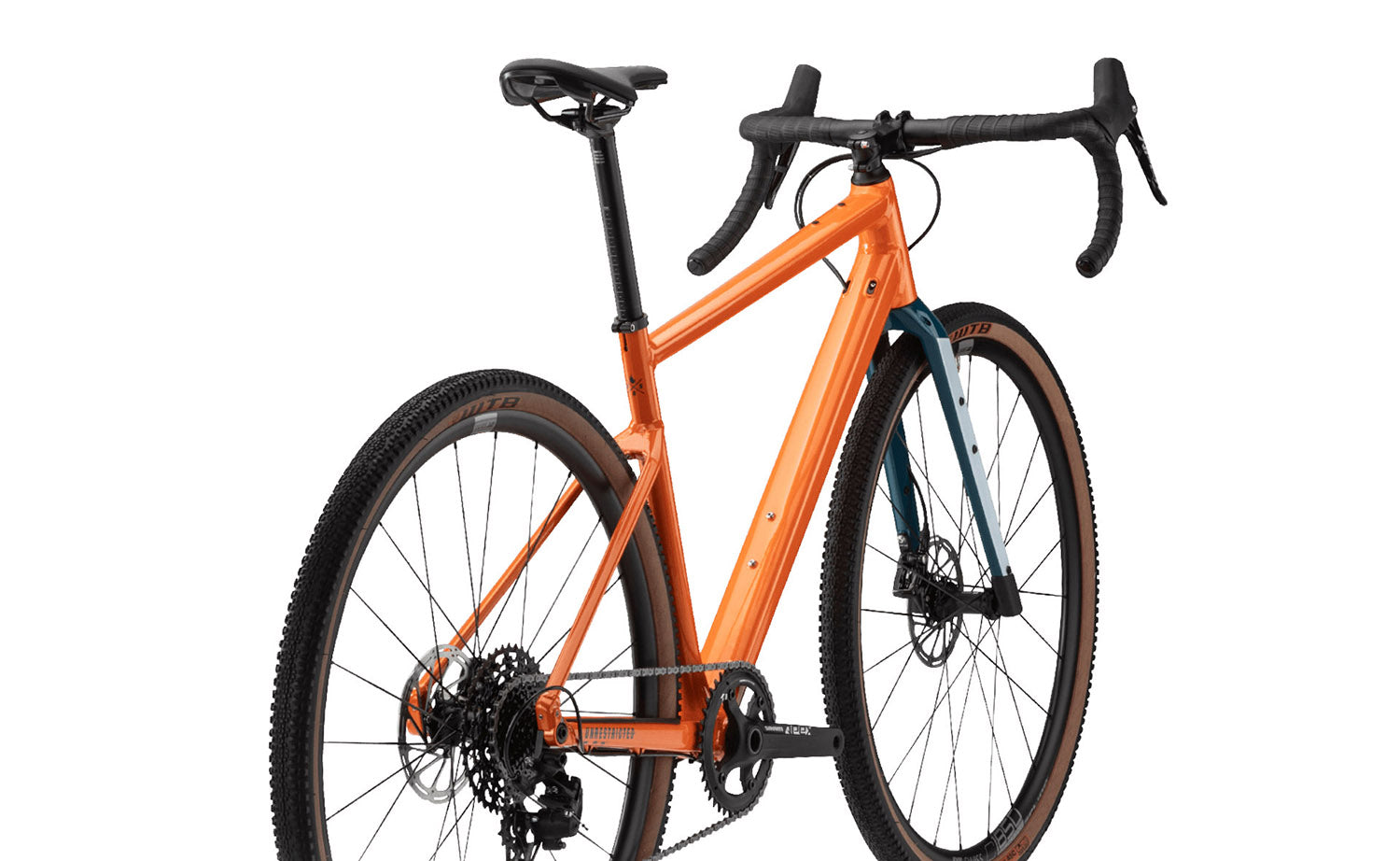

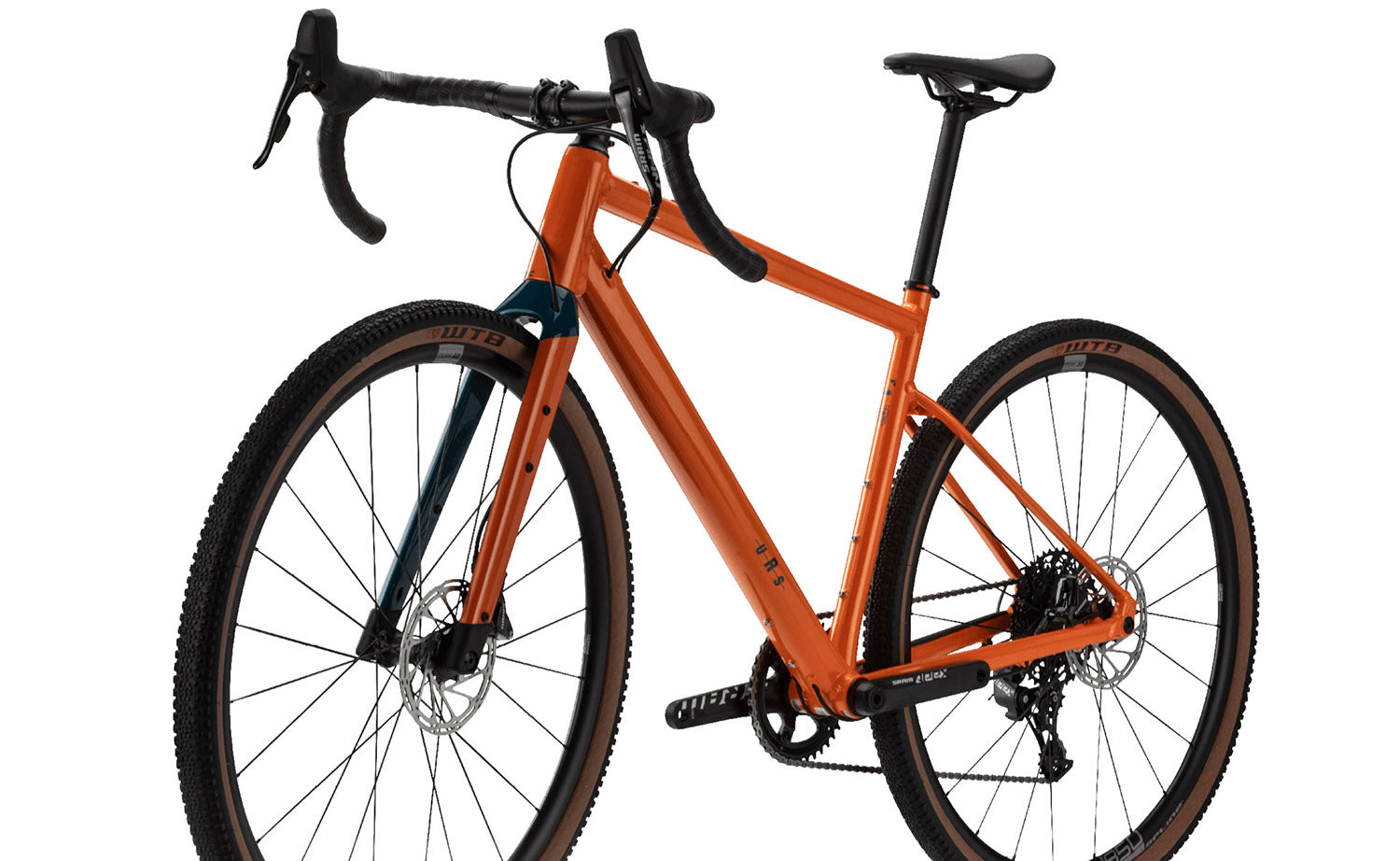

URS AL ONE

ORANGE

Prodotto dell’archivio BMC

URS AL ONE

Parti e accessori

Panoramica tecnica

Telaio

Telaio:
URS Premium Aluminium | Gravel+ Geometry | Internal Cable Routing | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle

Forcella:
URS Carbon | Internal BRake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Attacco Manubrio:
BMC MSM 02

Piega:
BMC RAB 03 | Ergo Top Shape | Compact Bend

Nastro:

Seat

Reggisella:
BMC RSP 03

Sella:
Selle Royal

Gruppo

Guarnitura:
SRAM Apex 1

Corona:
40T

Potenziometro:

Pacco pignoni:
SRAM Apex

Ingranaggi:
11-42T

Catena:
SRAM Apex

Deragliatore:

Cambio:
SRAM APEX 1 Long Cage

Comandi:
SRAM Apex 1 HRD

Rapporti:
1 x 11

Movimento centrale:
PF86 Bottom Bracket

Freni

Leve Freno / Pinze:
SRAM Apex HRD

Dischi freno:
SRAM Centerline

Diametro dischi:
180 / 160mm

Ruote

Cerchi:
DT Swiss C1850 SPLINE | 23mm

Mozzi:
DT Swiss C1850 SPLINE

Pneumatici:
WTB Riddler | 45mm

Informazioni Tubeless:

Informazioni aggiuntive

Sezione max coperture:
45mm

Classificazione ASTM:
Level 2

Limite di peso massimale :
120kg

SizeXSSMLXL
Rider Height< 165162-172170-182180-192>190
Reach390400410420430
Stack525550580610640
Bar Drop130130130130130
Bar Reach7070707070
Bar Rise
Bar Sweep
Bar Width420420420440440
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop6969696969
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170172.5172.5175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length410410410410410
Fork Rake4545454545
Frame Size
Front Center608626647668689
Front Center (SLACK)
Front Center (STEEP)
Head Tube92118150182214
Head Tube Angle7070707070
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center430430430430430
Saddle Height Range
Seat Angle7474747474
Seat Tube430445475505540
Seatpost Drop
Seatpost Length350350350350350
Seatpost Offset1515151515
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height720738768797830
Stem Angle±6±6±6±6±6
Stem Length7070708080
Top Tube540558576595614
Top Tube (SLACK)
Top Tube (STEEP)
Trail7878787878
Wheelbase10281047106810891110
Wheelbase (SLACK)
Wheelbase (STEEP)
