Technologie
Technische Übersicht
Rahmenset
Rahmen:
Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Integrated Battery | Internal Cable Routing | ICS Technology Stealth Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle
Gabel:
Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle
E-System
Motor:

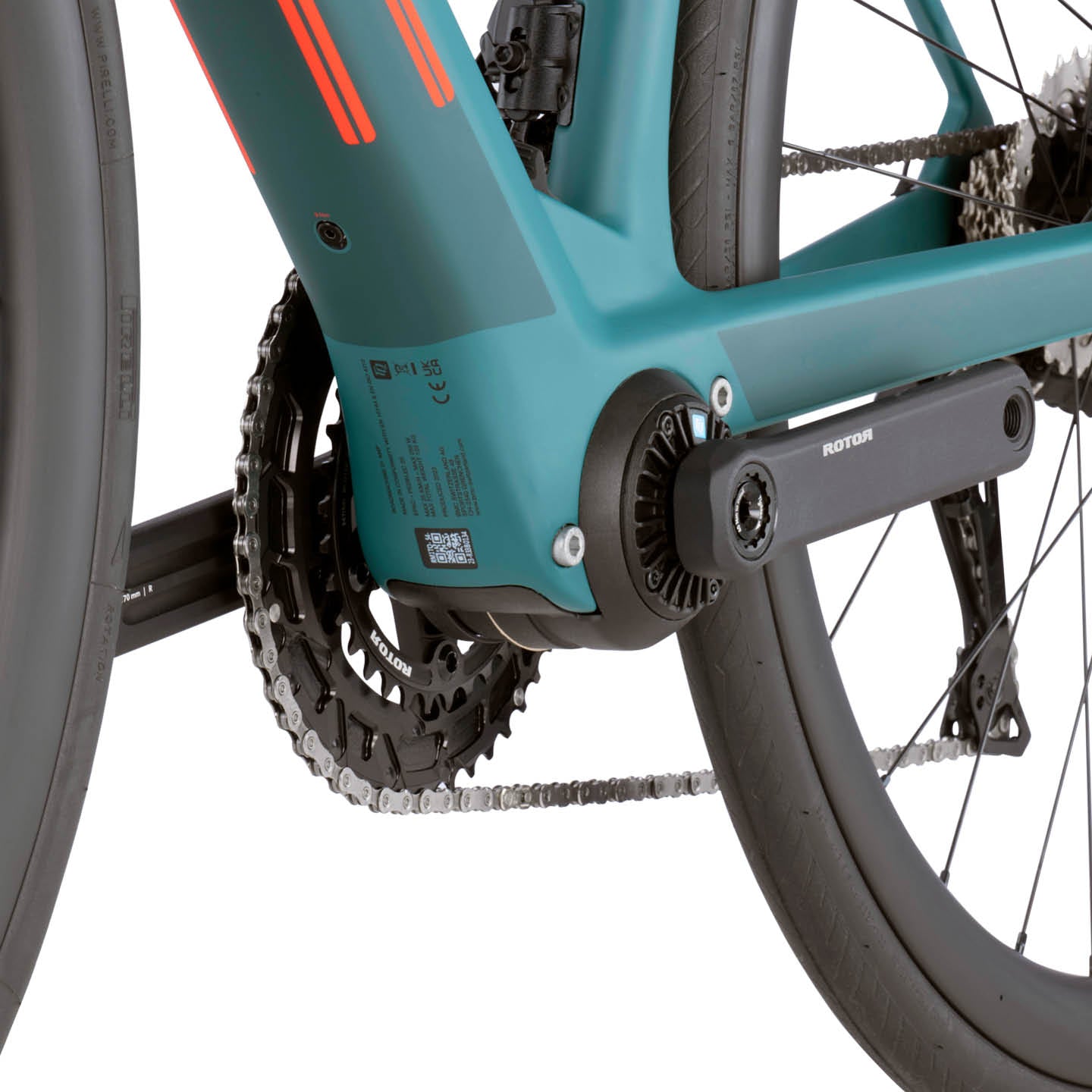

TQ-HPR50 Drive Unit
Akku:
TQ Battery | 360 Wh
Display:
TQ Display | 2" O-LED | Bluetooth / ANT+
Ladegerät:
TQ HPR-50 4A Charger
Cockpit
Vorbau:

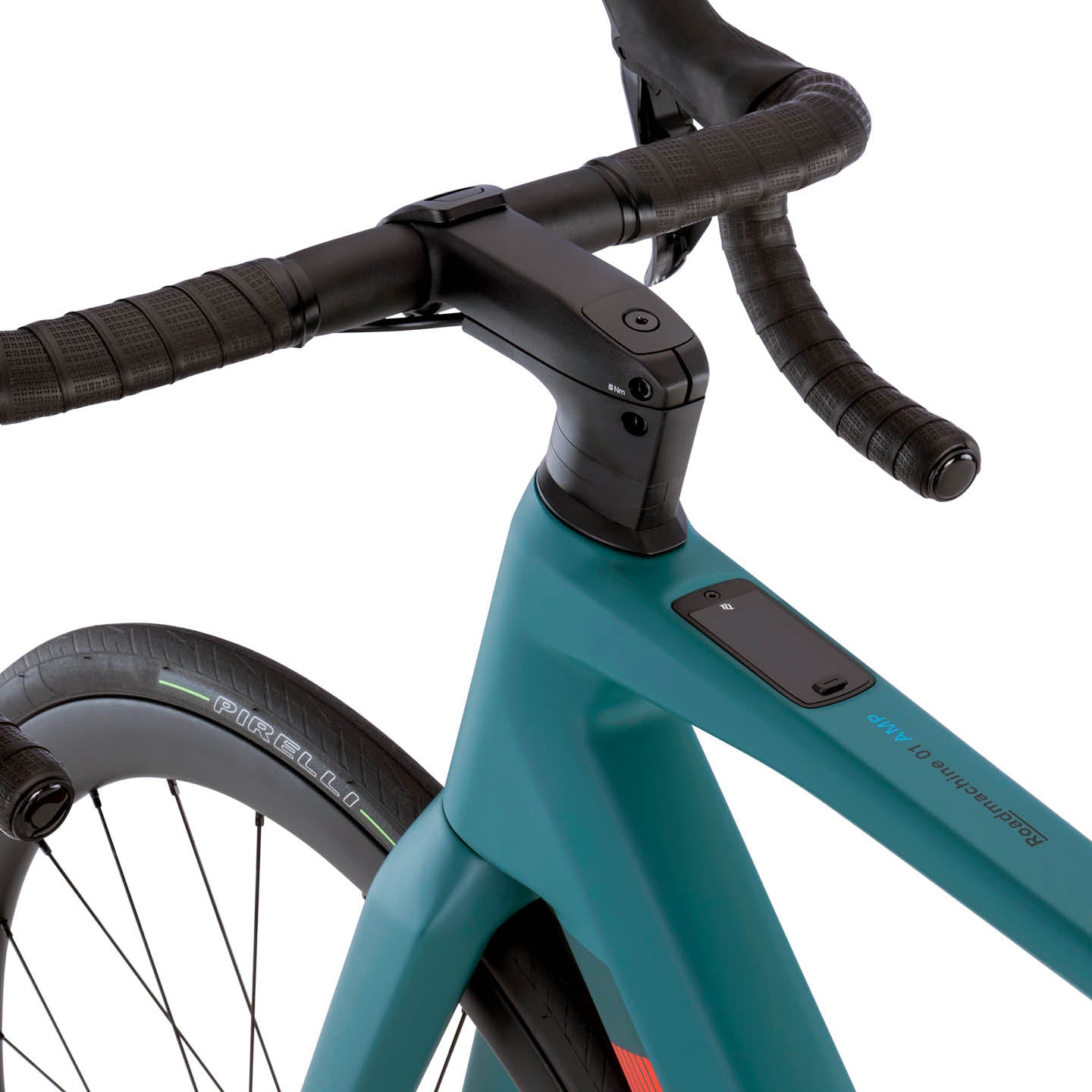

BMC ICS2 | Integrated Cockpit System Technology
Lenker:
BMC RAB 02 | Ergo Top Shape | Compact Bend
Sattel
Sattelstütze:
Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Sattel:
Fizik Argo Tempo R1 | 150mm
Antrieb
Kurbel:
Rotor eVegast
Kettenblätter:
50-34T
Kassette:
SHIMANO Ultegra
Kassettengrösse:
11-30T
Kette:
SHIMANO CN-M8100
Umwerfer:
SHIMANO Ultegra Di2 FD-R8150
Schaltwerk:
SHIMANO Ultegra Di2 RD-R8150
Schalthebel:
SHIMANO Ultegra Di2 ST-R8170
Übersetzung:
2 x 12
Bremsen
Bremshebel:
SHIMANO Ultegra BR-R8170
Bremsscheiben:
SHIMANO RT-MT800 / RT-EM810 | Centerlock
Bremsscheibengrösse (V/H):
180 / 180mm
Räder
Felgen:
CRD-400 SL Carbon | Tubeless Ready | 40mm
Naben (V/H):
CRD-400 SL
Bereifung:
Pirelli Cinturato Velo TLR | 32mm
Tubeless-Informationen:
Tubeless Ready Rims | Tubetype Tires
Zubehör
Weitere Informationen
Reifenfreiheit:
38mm
Gewicht ohne Pedale:
12.5 Kg
ASTM-Klassifizierung:
Level 2
Maximales Systemgewicht:
120kg
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <162 | 162-174 | 172-180 | 178-186 | 184-192 | >190 |
Reach | 370 | 379 | 383 | 388 | 393 | 398 |
Stack | 525 | 550 | 570 | 595 | 620 | 645 |
Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
BB Drop | 75 | 75 | 75 | 75 | 75 | 75 |
Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
Fork Length | 380 | 380 | 380 | 380 | 380 | 380 |
Fork Rake | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center | 579 | 596 | 594 | 607 | 620 | 633 |
Head Tube | 112 | 138 | 154 | 181 | 207 | 233 |
Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
Rear Center | 420 | 420 | 420 | 420 | 420 | 420 |
Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Seat Tube | 420 | 460 | 500 | 525 | 545 | 575 |
Seatpost Length | 230 | 280 | 280 | 280 | 280 | 330 |
Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height | 728 | 755 | 786 | 810 | 829 | 850 |
Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
Stem Length | 90 | 90 | 100 | 110 | 110 | 110 |
Top Tube | 519 | 535 | 544 | 556 | 568 | 581 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
