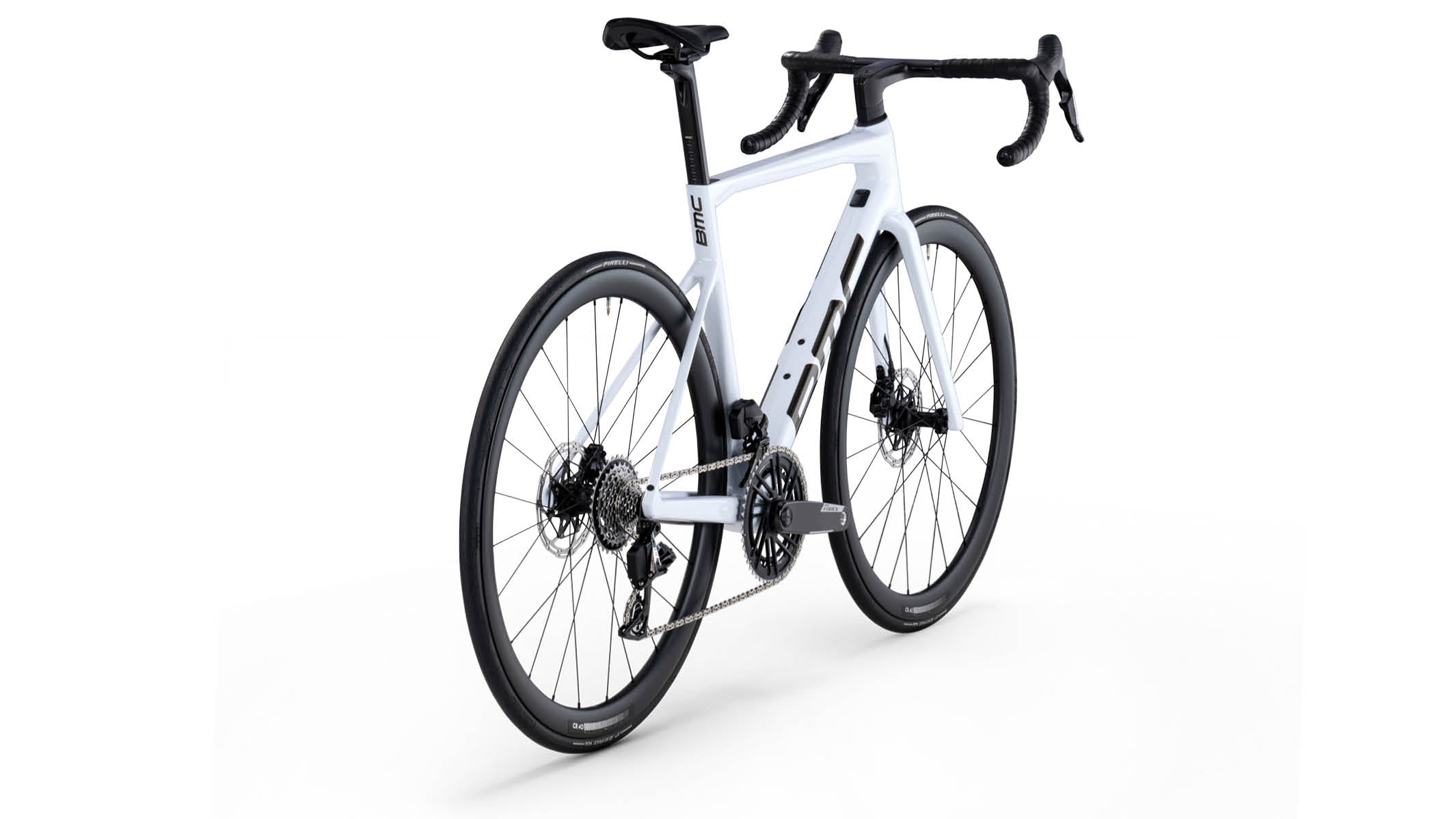

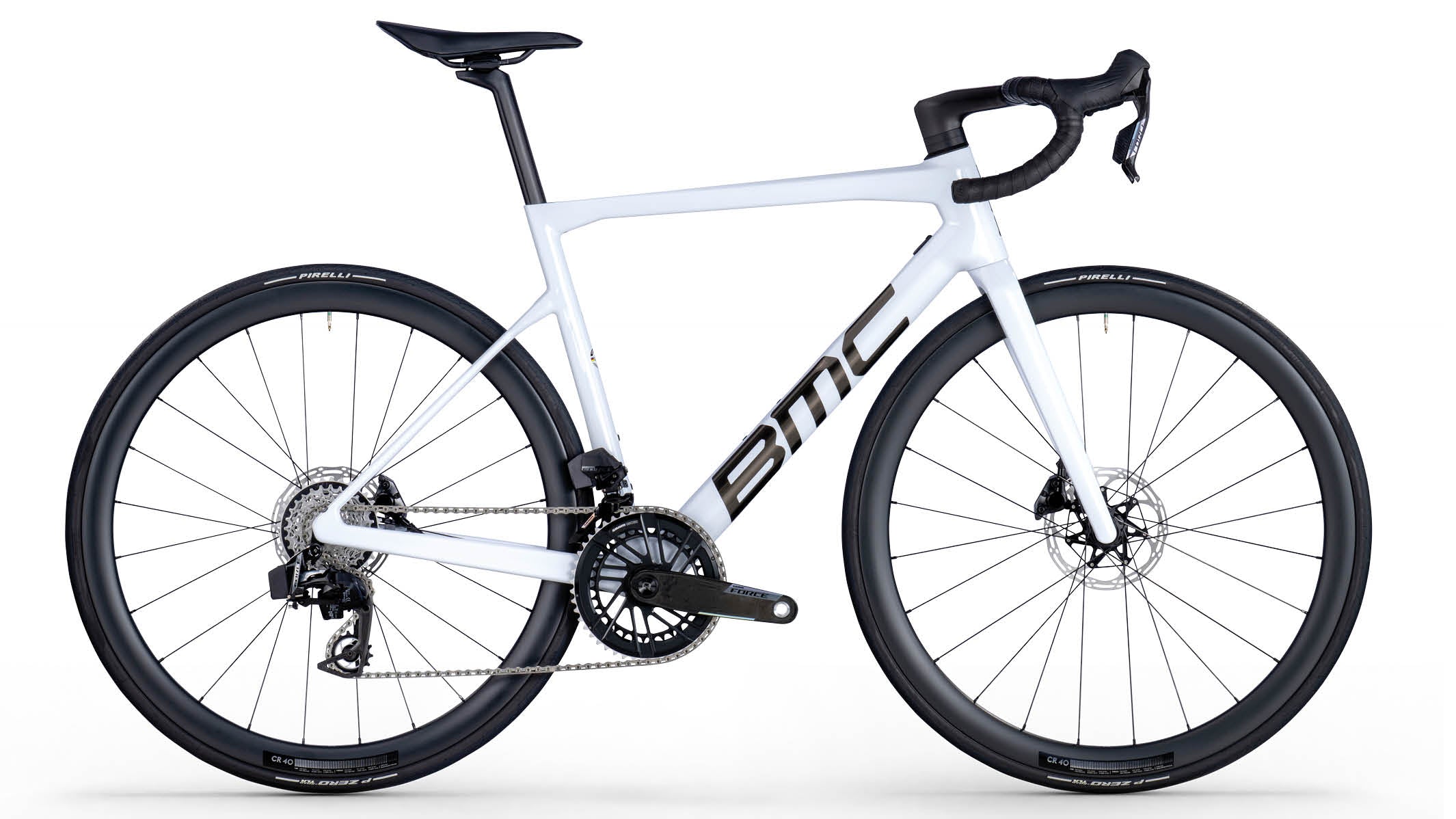

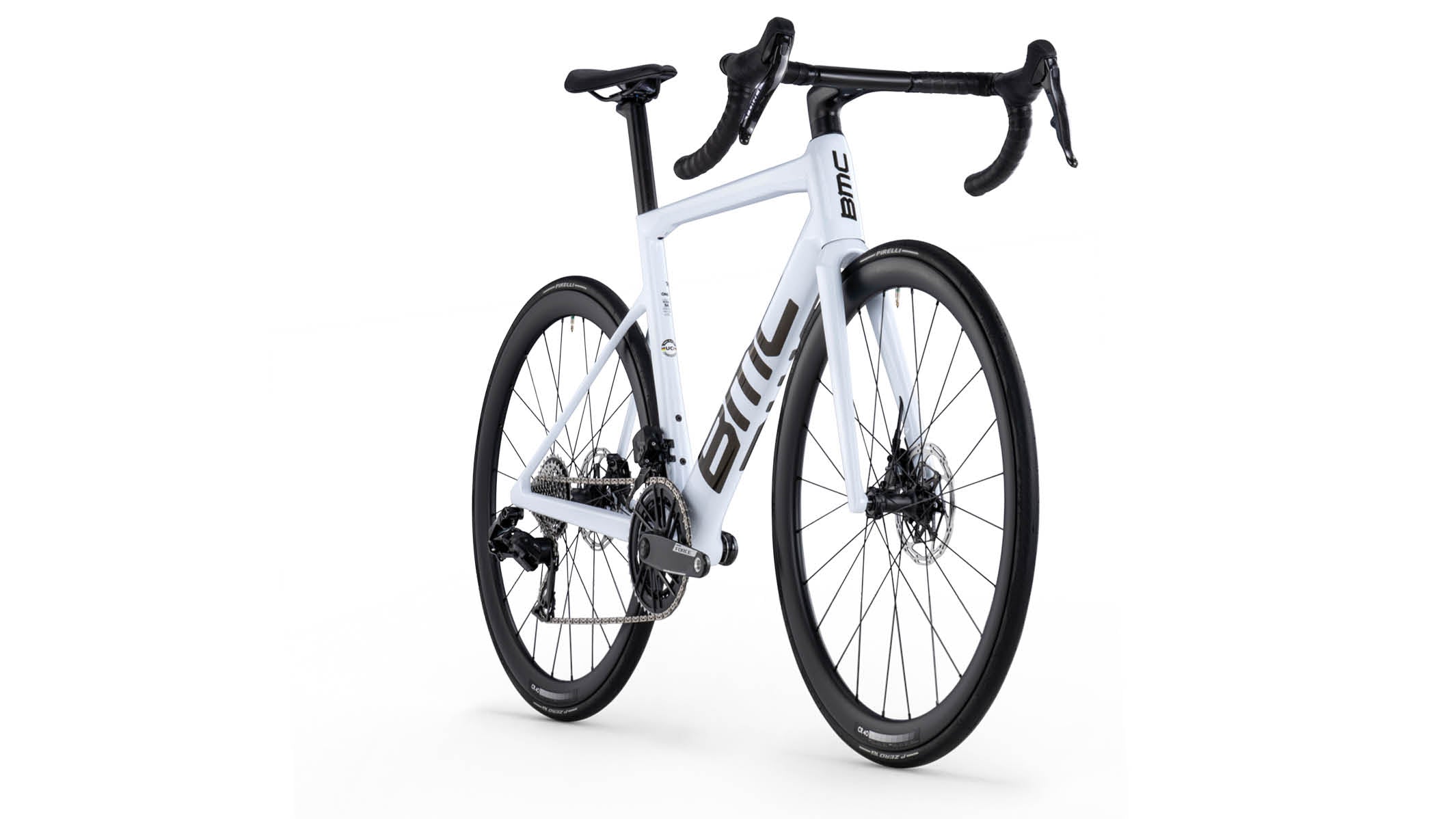

Engineered to perform, meet the Teammachine SLR. The result of over a decade of relentless development, crafted from lightweight premium carbon with TCC Race compliance and a D-Shape Carbon seatpost, it delivers the legendary BMC ride feel - fast, responsive, and comfortable. Powered by the newest SRAM Force AXS drivetrain, equipped with a power meter, enhanced with our high end ICS Carbon Evo one-piece cockpit and fitted with carbon wheels, it's built for riders who demand precision. This bike sets the standard for modern road cycling.
Technology
Accelerated Composites Evolution Technology + (ACE+)
True BMC Ride Feel
Aerocore and ICS
Comfort Is Speed
Technical Overview
Frameset
Frame:
Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages
Fork:
Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61
Cockpit
Handlebar:
ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare
Seat
Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset
Saddle:
Fizik Argo Vento R5 | 140mm
Drivetrain
Crankset:
SRAM Force AXS (FC-FRC-P-E1)
Chainrings:
48-35T
Power Meter:
SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1)
Cassette:
SRAM Force (CS-XG-1270-E1)
Cassette Size:
10-33T
Chain:
SRAM Force (CN-FRC-E1)
Front Derailleur:
SRAM Force AXS (FD-FRC-E-E1)
Rear Derailleur:
SRAM Force AXS (RD-FRC-E-E1)
Shifters:
SRAM Force AXS (ED-FRC-E1)
Gears:
2 x 12
Bottom Bracket:
SRAM Press Fit DUB
Brakes
Brake Levers / Calipers:
SRAM Force AXS (ED-FRC-E1)
Rotors:
SRAM Centerline X | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CRD-351 Carbon | Tubeless Ready | 35mm [or] CRD-351 SL Carbon | Tubeless Ready | 35mm [or] CR 40 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
CRD-351: TXC-712 & TXC-142S Centerlock [or] CRD-351 SL: TXC-812 & TXC-240A Centerlock [or] CR 40: TXC-812 & TXC-2406 Centerlock
Tires:
Pirelli P Zero Road TLR | Tubeless | 26mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Additional Information
Tire Clearance:
30mm
Weight without Pedals:
7.7kg | Size 54 with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 127 | 127 | 127 | 127 | 127 | 127 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 400/436 | 400/436 | 400/436 | 400/436 | 400/436 | 420/456 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -12 | -12 | -12 | -12 | -12 | -12 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
