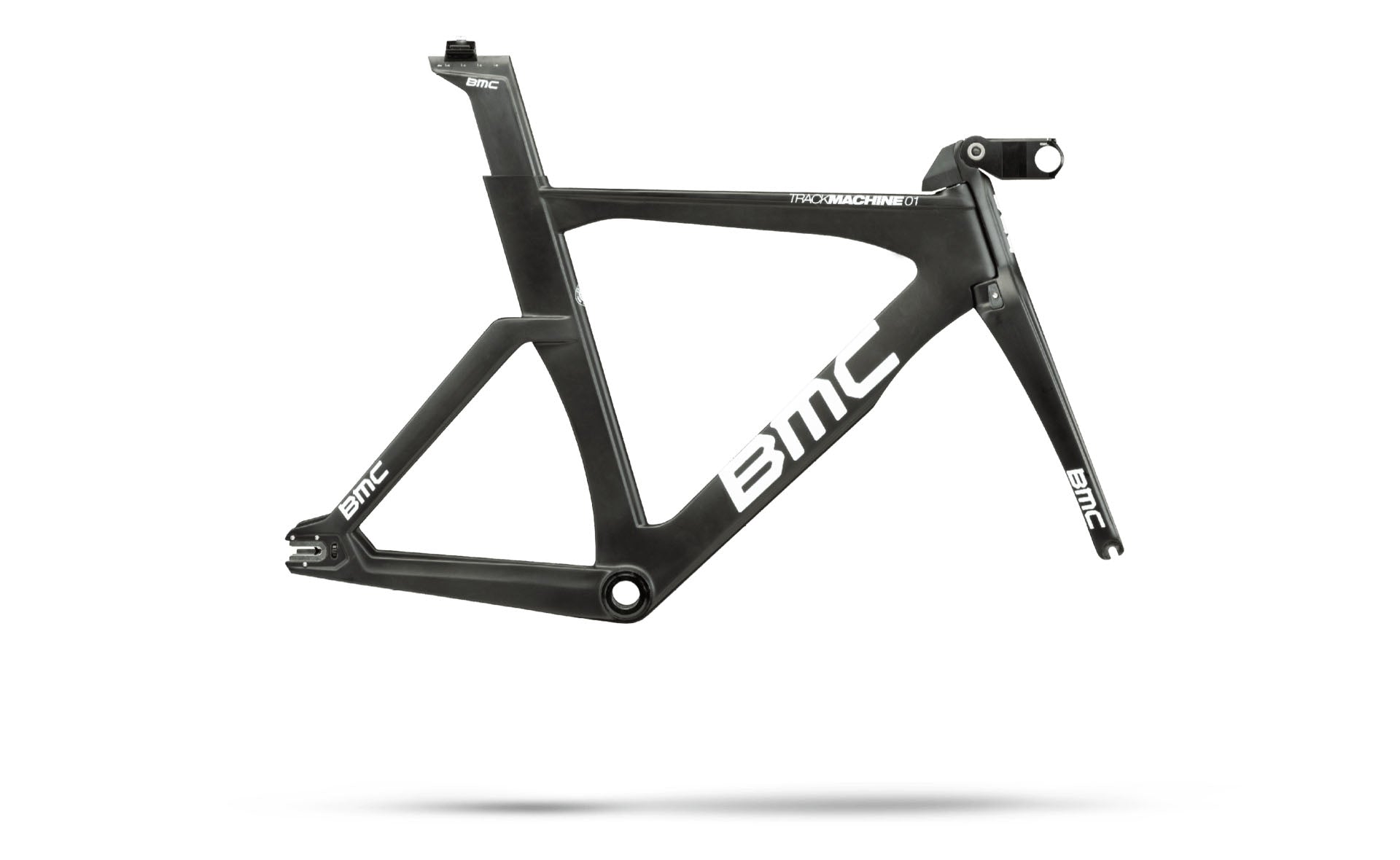

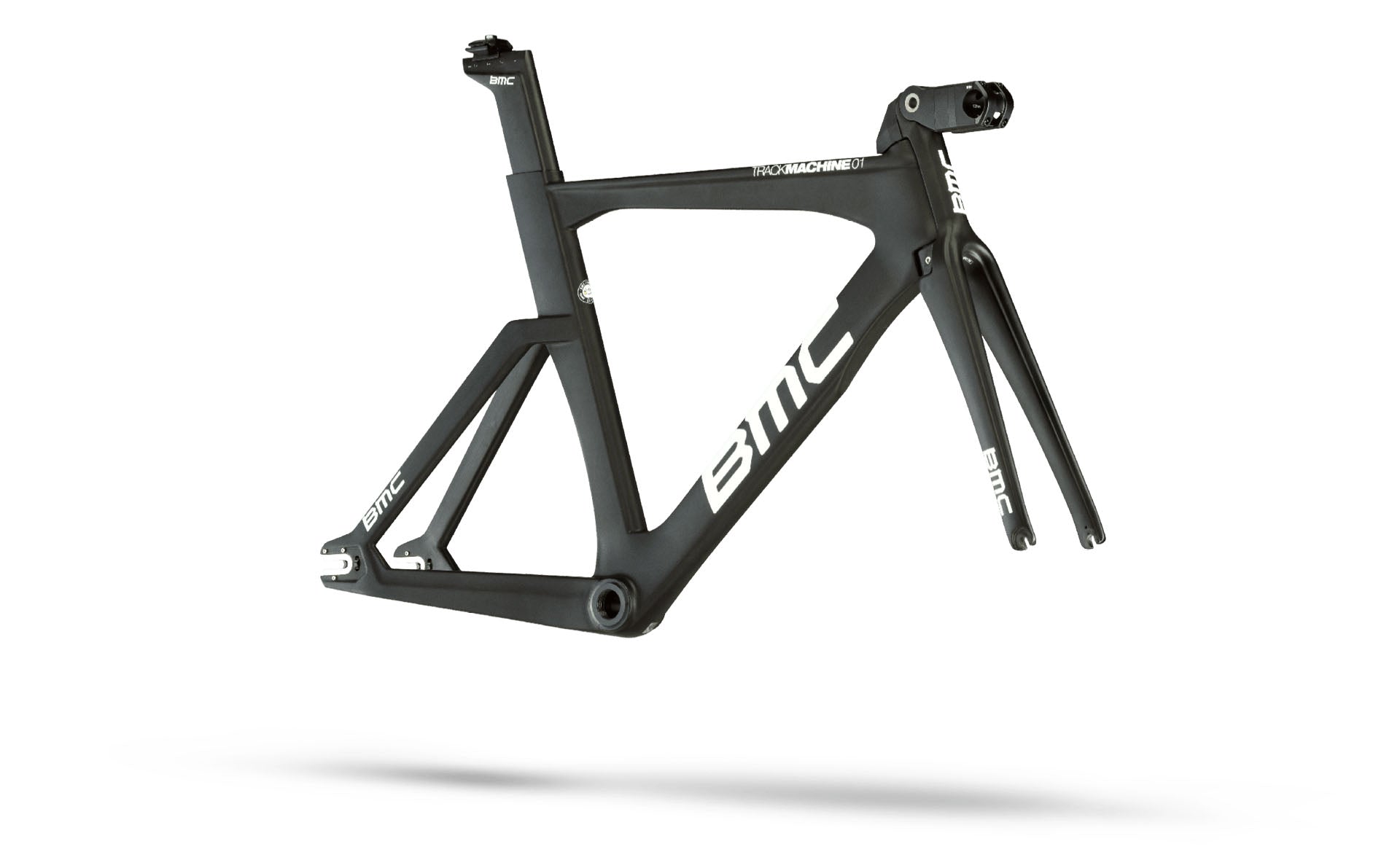

The Trackmachine 01 FRS is the highly refined, stunningly engineered core of your ultimate track bike. With a rich heritage on the boards, its efficiency and adjustability continue to impress, and it's a bike that can quickly and easily be adapted for numerous track disciplines. Built from Premium Carbon and invested with our Vmax Aero Design technology, it features a Hinge Design fork, sliding rear dropouts, a threaded bottom bracket shell, plus an adjustable Aero Seatpost and integrated stem.
Technology
Technical Overview
Frameset
Frame:
Trackmachine 01 Premium Carbon with Vmax Aero Design P2P Positioning System | Sliding Dropouts
Fork:
Trackmachine 01 Premium Carbon with Vmax Aero Design Hinge-Design
Cockpit
Stem:
Vmax Aero Integrated Design | P2P Technology
Seat
Seatpost:
Trackmachine 01 Premium Carbon Aero Seatpost with P2P Positioning SyStem
Additional Information
Tire Clearance:
23mm
ASTM Classification:
Level 1
System Weight Limit:
150kg
Size | S | M | L |
---|---|---|---|
Rider Height | <173 | 170-185 | >183 |
Reach | 390 | 408 | 430 |
Stack | 471 | 506 | 544 |
BB Drop | 50 | 58 | 58 |
Fork Length | 363 | 363 | 363 |
Fork Rake | 48 | 48 | 48 |
Front Center | 586 | 604 | 626 |
Head Tube | 94 | 134 | 163 |
Head Tube Angle | 72 | 72 | 72 |
Rear Center | 390-420 | 390-420 | 390-420 |
Seat Angle | 74 | 74 | 74 |
Seat Tube | 505 | 542 | 582 |
Seatpost Length | 300 | 300 | 300 |
Seatpost Offset | 30 / 10 / -10 / -30 | 30 / 10 / -10 / -30 | 30 / 10 / -10 / -30 |
Standover Height | 751 | 779 | 817 |
Stem Angle | p2p Adjustable | p2p Adjustable | p2p Adjustable |
Stem Length | p2p Adjustable | p2p Adjustable | p2p Adjustable |
Top Tube | 525 | 553 | 585 |
Trail | 59 | 59 | 59 |
Wheelbase | 963 | 981 | 1003 |
