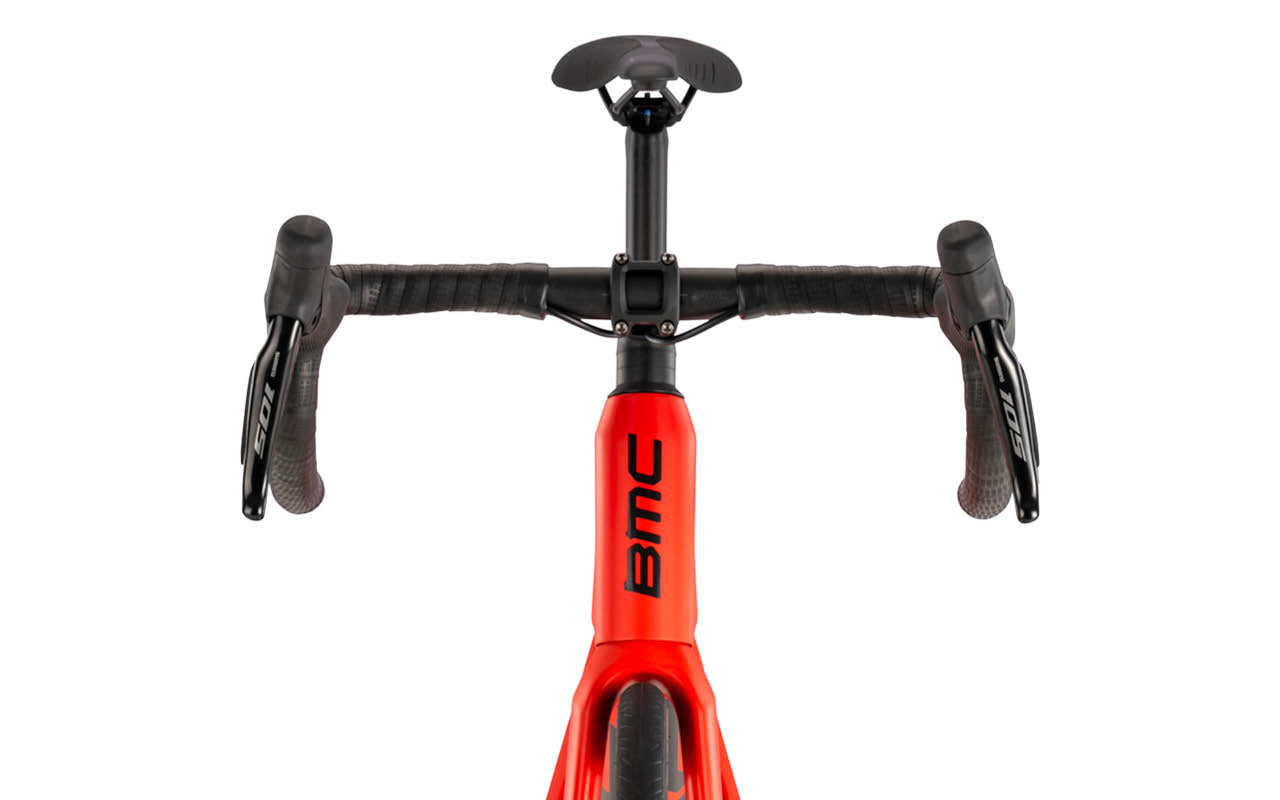

Accelerated Composites Evolution Technology + (ACE+)

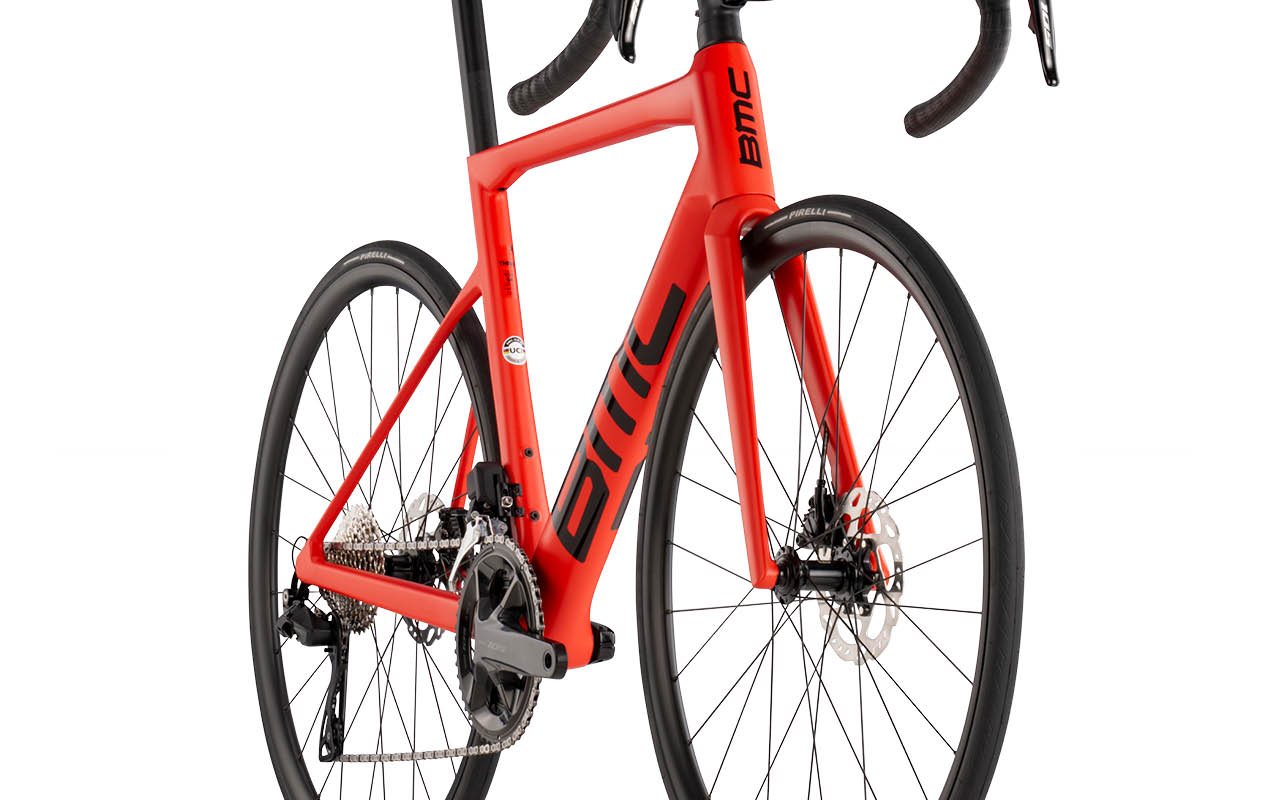

innovationAuténtica sensación BMC
La Teammachine SLR ofrece la misma rigidez que la serie SLR 01 de alta gama y garantiza la sensación de conducción característica de BMC en cada pedalada.

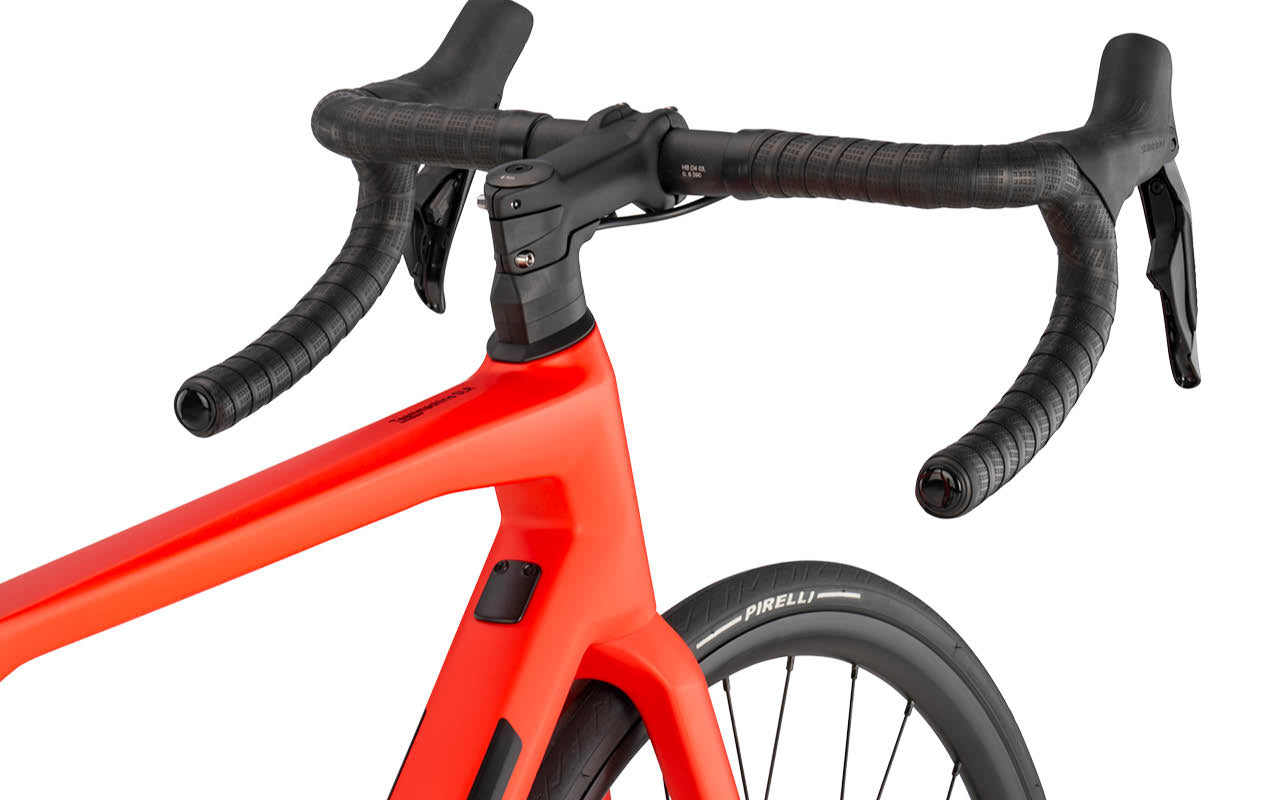

Aerocore e ICS
Los detalles importan. El sistema ICS (Integrated Cockpit System) garantiza un guiado sigiloso de los cables sin comprometer la rigidez ni el peso. Los portabidones opcionales se integran perfectamente en el diseño aerodinámico del cuadro.

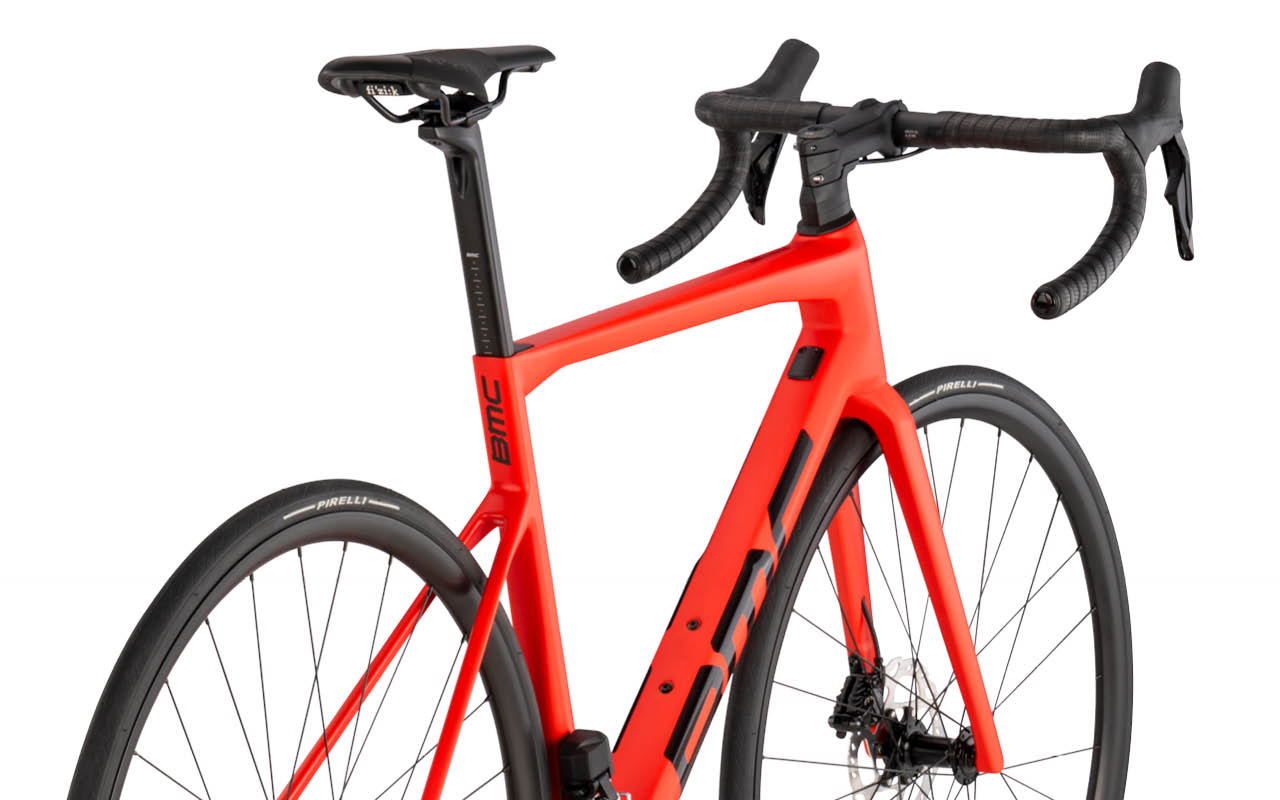

La comodidad es velocidad
El nuevo Teammachine SLR ofrece más cumplimiento que nunca, gracias a la última evolución de la tecnología Tuned Compliance Concept (TCC).
Descripción técnica
Cuadro
Cuadro:
Teammachine SLR Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages
Horquilla:
Teammachine SLR Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61
Cockpit
Potencia:
BMC RSM 01 | Integrated Cockpit System Technology
Manillar:
BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare
Seat
Tija de Sillín:
Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset
Sillín:
Fizik Antares R7 | S-Alloy rail 140mm -or- Selle Italia Model X Superflow | FeC Alloy rail | 145mm
Transmisión
Platos y Bielas:
SHIMANO 105 FC-R7100
Platos:
50-34T
Cassette:
SHIMANO 105 CS-R7101
Tamaño del cassette:
11-34T
Cadena:
SHIMANO CN-M6100
Desviador Delantero:
SHIMANO 105 Di2 FD-R7150
Cambio Trasero:
SHIMANO 105 Di2 RD-R7150
Manetas de Cambio:
SHIMANO 105 Di2 ST-R7170
Marchas:
2 x 12
Pedalier:
SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Frenos
Pinzas de Freno:
SHIMANO 105 BR-R7170
Discos:
SHIMANO SM-RT70 | Centerlock
Tamaño del disco:
160 / 160mm
Ruedas
Llantas:
PRD23 | 23mm
Bujes:
SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock| 28H
Neumáticos:
Pirelli P Zero Road | 26mm
Información Tubeless:
Non-Tubeless Rims | Non-Tubeless Clincher Tire
Información adicional
Paso de rueda:
30mm measured tire
Peso sin pedales:
8.3kg | Size 54 as pictured with all accessories
Clasificación ASTM:
Level 1
Límite de peso del sistema:
110kg
Reglamento relativo a la seguridad general de los productos (GPSR):
Instrucciones de seguridad GPSR (UE)
Persona responsable según el GPSR (UE)
Geometría
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Width | 390/414 | 390/414 | 390/414 | 410/434 | 410/434 | 430/454 |
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -8 | -8 | -8 | -8 | -8 | -8 |
| Stem Length | 90 | 100 | 100 | 110 | 110 | 120 |
| Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
