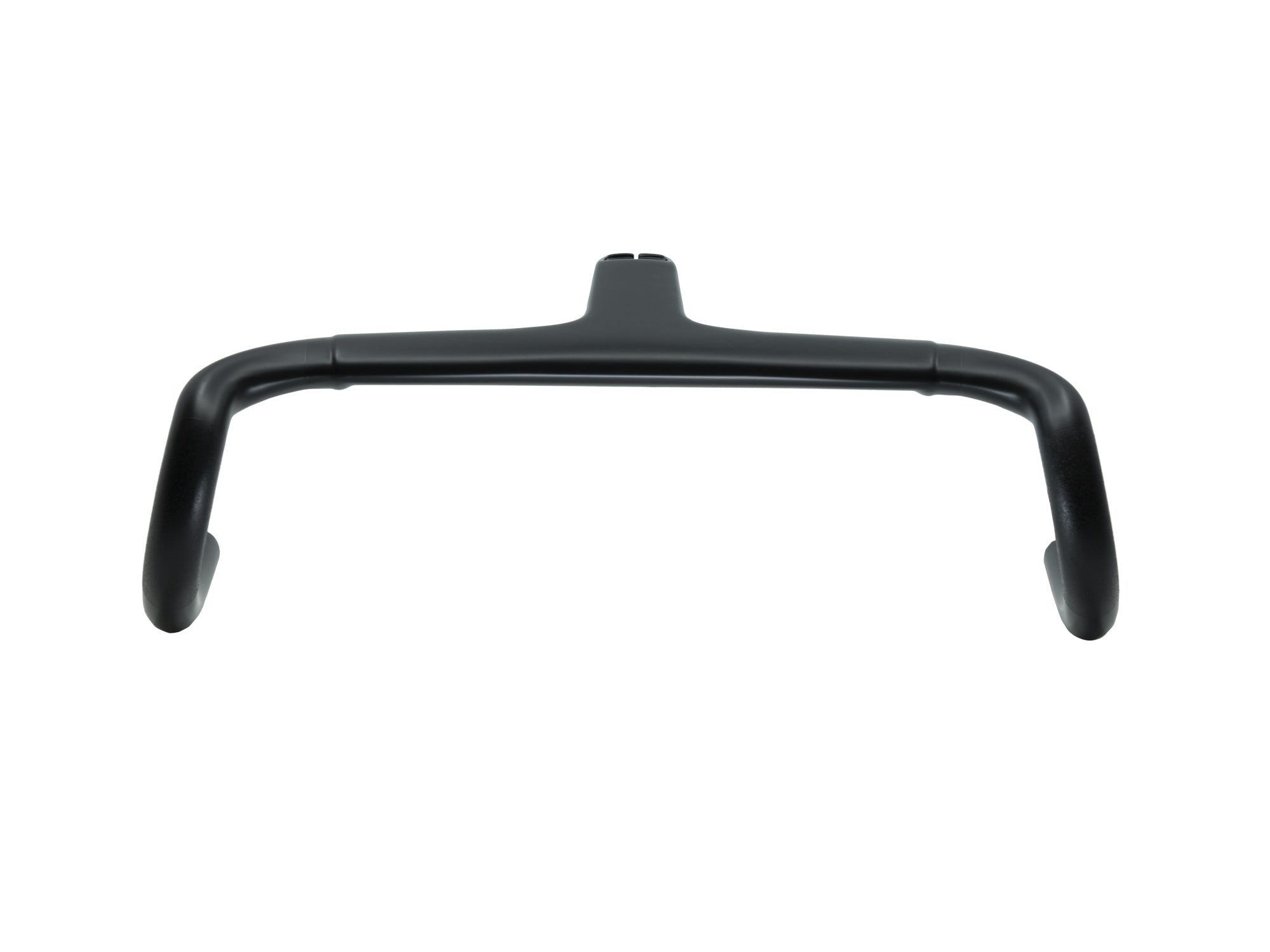

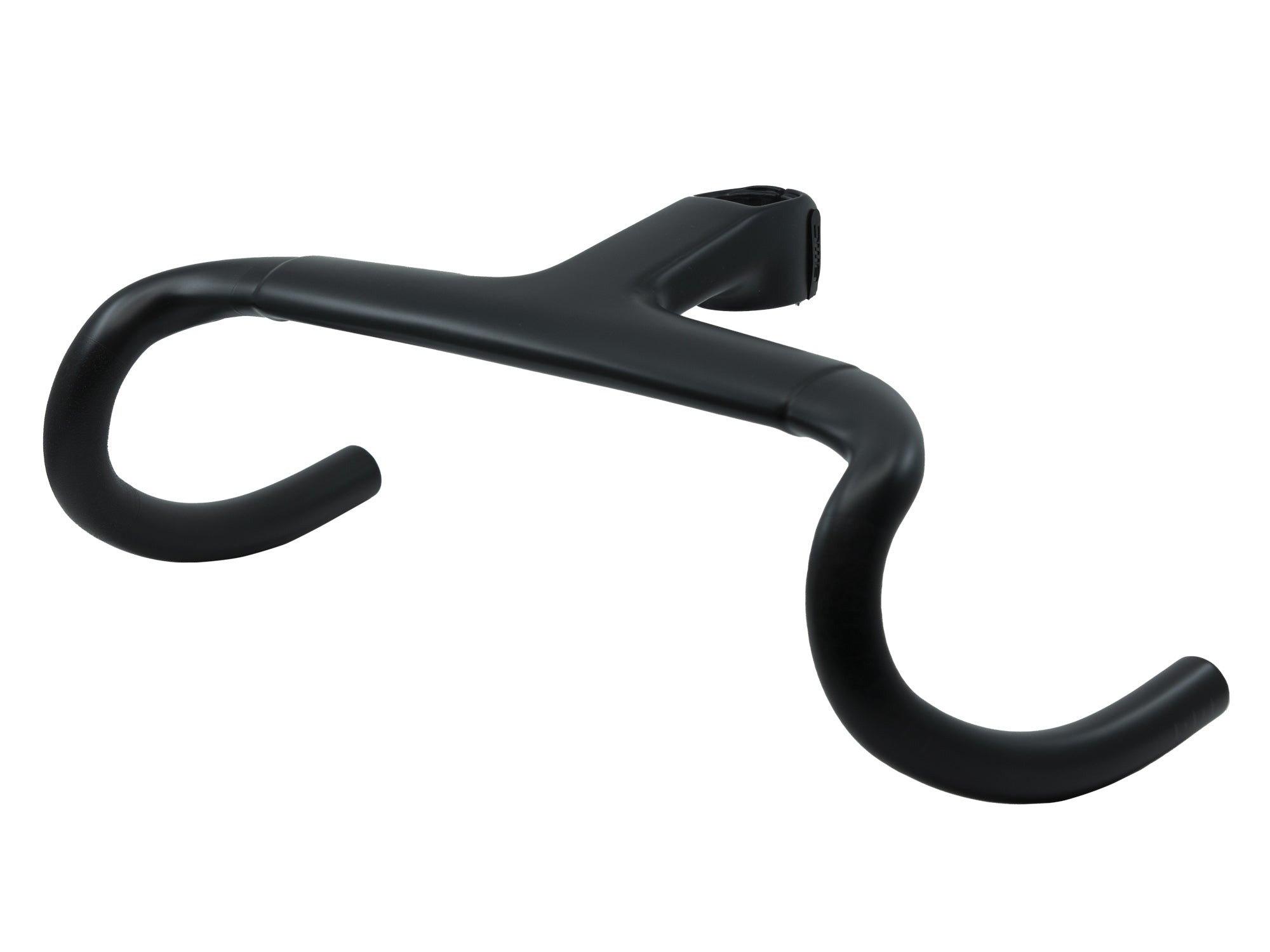

A New Standard in Aerodynamic Performance. ICS Aero redefines speed with progressive aerodynamic shaping and a reduced frontal profile, perfectly aligned with the drag-reducing design of our performance frames.
Engineered for Road and Gravel Racing, this cockpit has become a benchmark in aerodynamic integration. Its 360 mm top width (369 mm at the hoods) delivers an efficient, race-ready position, while the 12.5° flare and 420 mm width at the drops provide exceptional control at high speeds and on loose terrain.
The progressive drop design ensures a secure grip for maximum handling confidence.
Available in multiple stem lengths from 80 to 140 mm, in 10 mm increments, so you can fine-tune your fit.
Compatible with our optional computer mount to fit Garmin and Wahoo devices, plus a GoPro mount interface allowing you to add additional accessories such as lights, cameras, etc.
Optional components:
- Computer Mount | ICS Carbon Aero Cockpit (30003730)
- Carbon Aero Cockpit Clip-On Extensions (30004681)
Technical Overview
Features
Compatible with:
Check ICS Guide for compatibility
Included in the Box:
Expander bolt | top cap inetgrated | top cap interface round | clamping nut | plate | clamping bolts | bolts cover
Additional Information
Weight:
Weight of size 110 x 360/420: Without computer mount 361g | With computer and GoPro mounts 396g (optional - not included)
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 80mm | 90mm | 100mm | 110mm | 120mm | 130mm | 140mm |
|---|---|---|---|---|---|---|---|
| Bar Drop | 135 | 135 | 135 | 135 | 135 | 135 | 135 |
| Bar Reach | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| Bar Width | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 | 360/420 |
| Stem Angle | -15° | -15° | -15° | -15° | -15° | -15° | -15° |
| Stem Length | 80 | 90 | 100 | 110 | 120 | 130 | 140 |
