Technical Overview
Frameset
Frame:

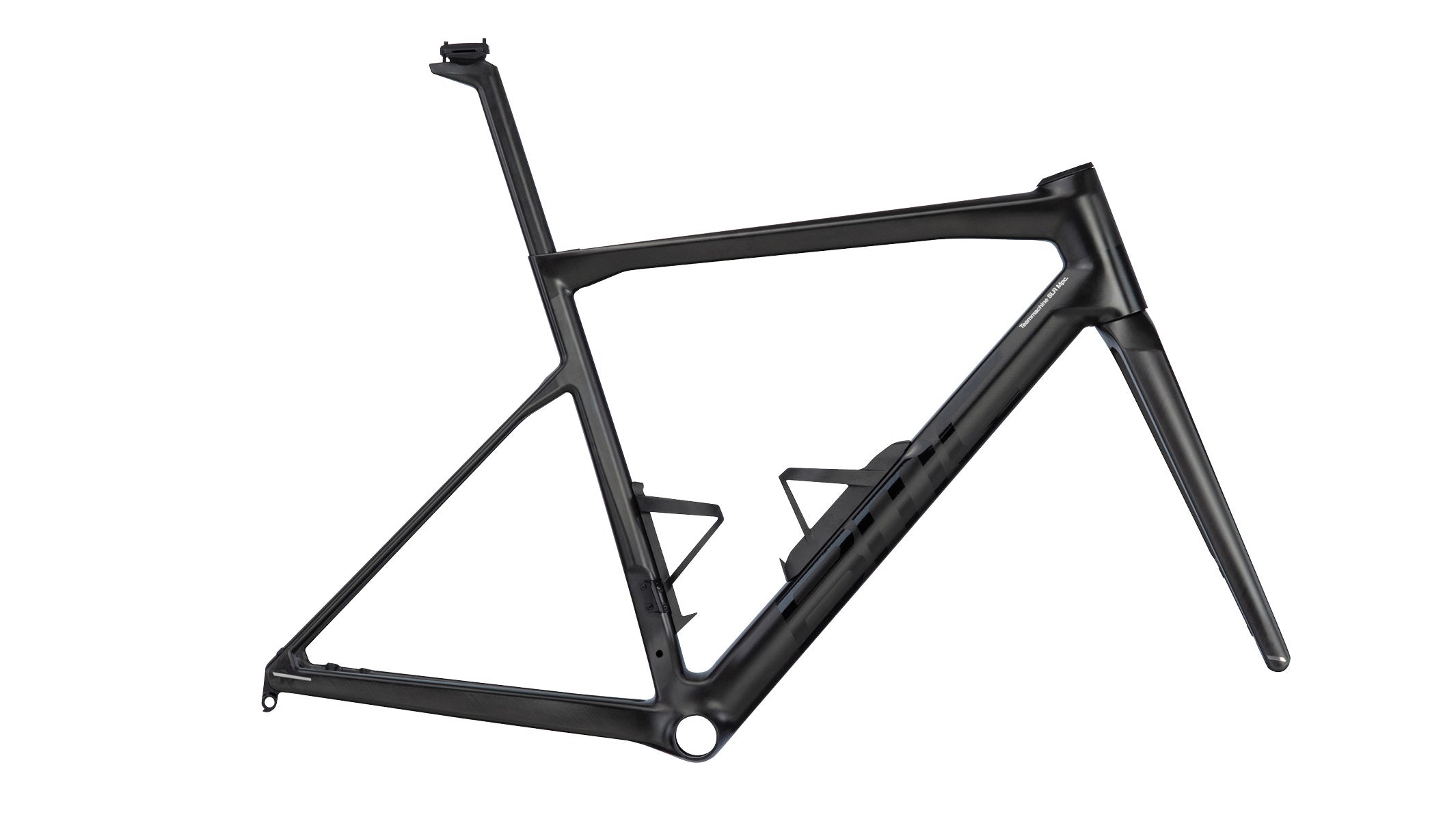

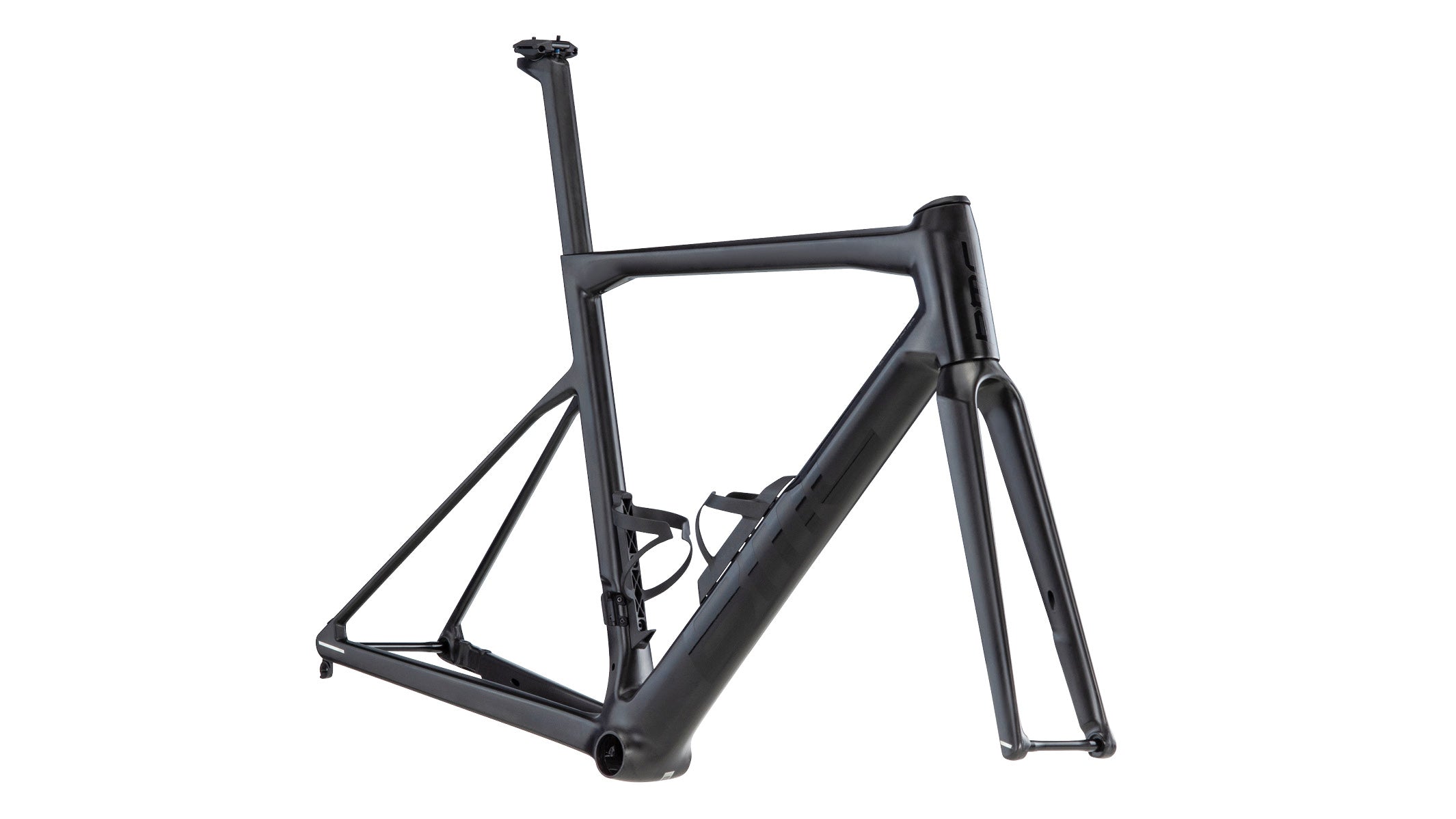

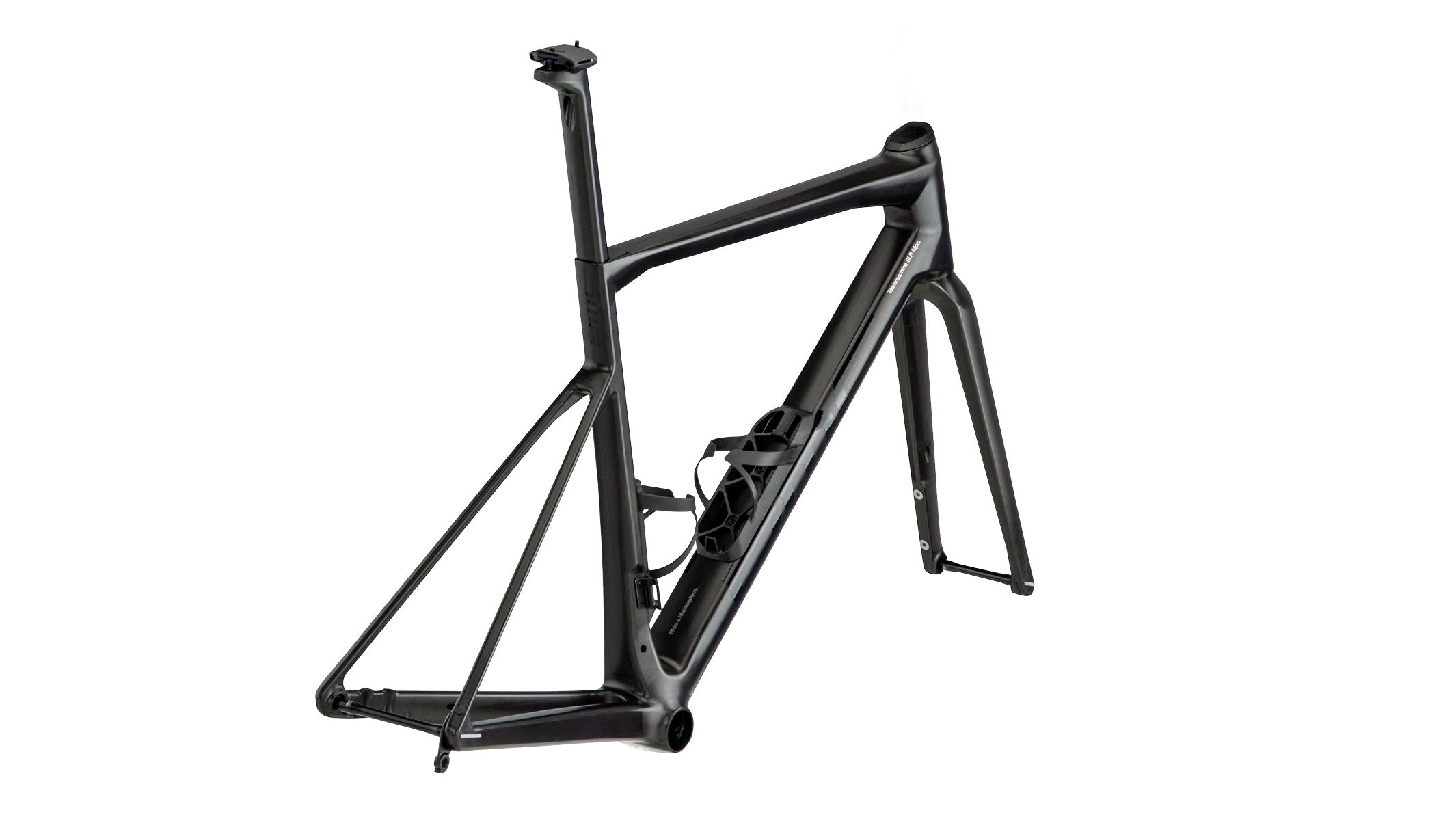

Teammachine SLR Mpc Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Integrated Aerocore Bottles Cages | Stealth Dropout Design | TCC Race Compliance Level | PF86 Bottom bracket | Flat mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR Mpc Premium Carbon | ICS Technology - Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat mount Disc | 12 x 100mm Thru-Axle
Seat
Seatpost:
Teammachine SLR Mpc Premium Carbon D-Shaped Seatpost | 15mm Offset
Accessories
Additional Information
Tire Clearance:
30mm
Weight:
Frame 731 g | Fork 308 g | Seatpost 140 g
ASTM Classification:
Level 1
System Weight Limit:
110kg
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
Reach | 367 | 377 | 386 | 392 | 401 | 409 |
Stack | 506 | 530 | 550 | 565 | 584 | 608 |
BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
Pick your own Cockpit
ICS Carbon Aero
ICS Carbon Aero features a progressive aerodynamic shaping with a reduced frontal section to match the drag-reducing design of our performance frames.
ICS Carbon Evo
Allying performance with usability, the ICS Carbon Evo Cockpit is engineered at the sweet spot for performance-oriented riders.
ICS Carbon
ICS Carbon, the first one-piece cockpit in the BMC range with an incredibly low weight, high stiffness with superior performance and aesthetics.
